Carrelli di trasporto motorizzati | HTS | the load moving experts

I carrelli di trasporto della serie POWER-Skate sono carat­te­rizzati da quanto segue:

  • Design compatto con dimen­sioni esterne ridotte
  • Sterzo facile grazie al controllo propor­zionale diretto
  • Potenti motori sincroni a controllo digitale
  • Può essere combinato con tutti i carrelli della serie XL
  • Ideale per l’uso in spazi ristretti (non è neces­sario il traino)

PSI 5‑10

Article Number
10.050.51.10
Max. Capacity
5000 kg
Wheels
8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diameter
Ø 150 mm
Dimensions: Length x Width x Height
866 x 861 x 110 mm
Weight
100 kg

iN80S

Article Number
10.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Weight
25 kg

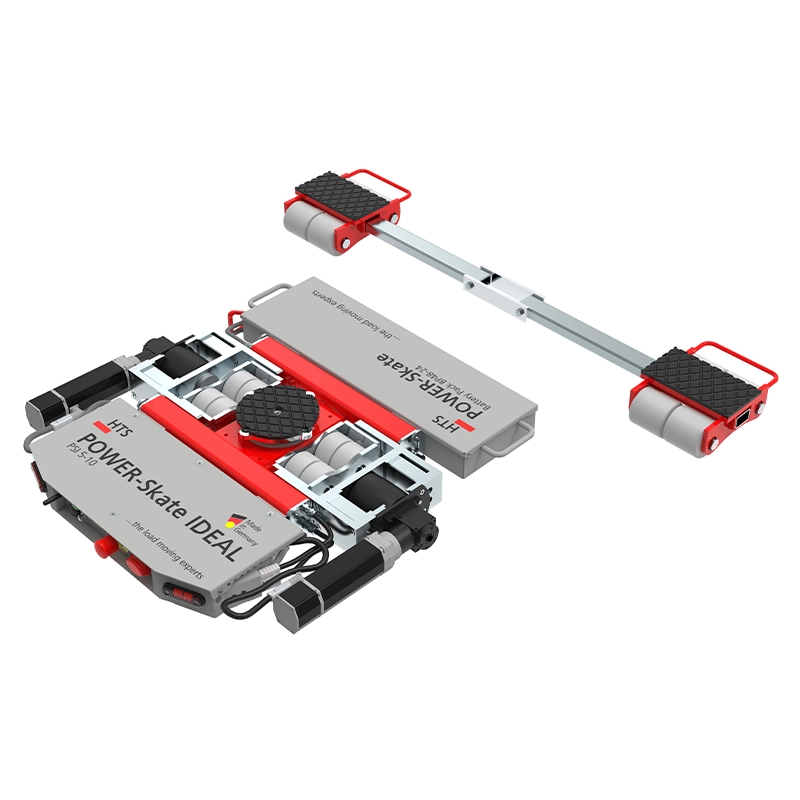

PSI 5‑10 + iN80S Set

Max. Capacity
10000 kg

PSX 12‑24

Max. Capacity
12000 kg

XN20S‑B

Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
81 kg

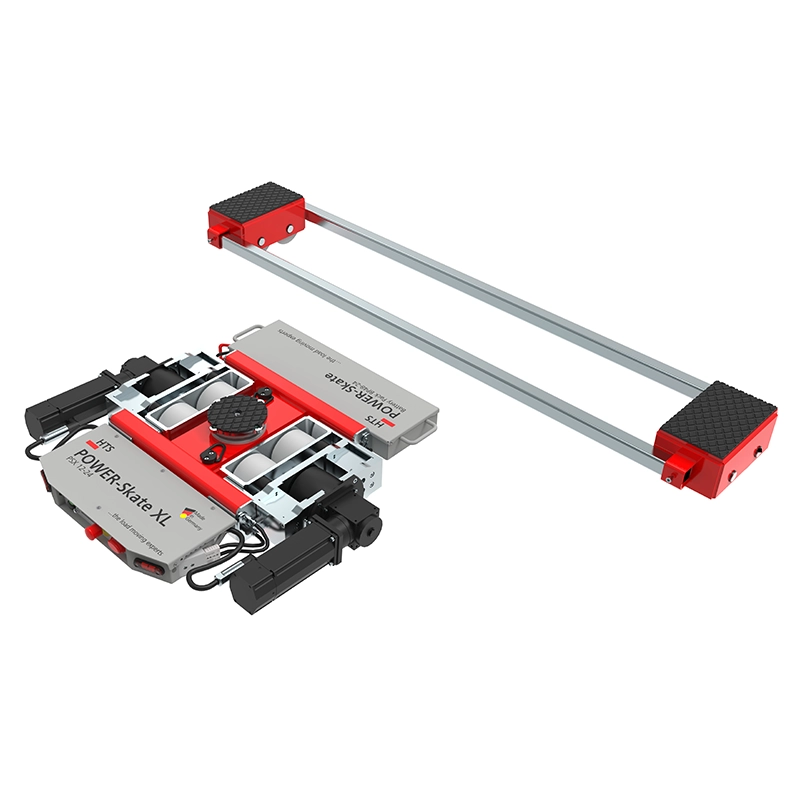

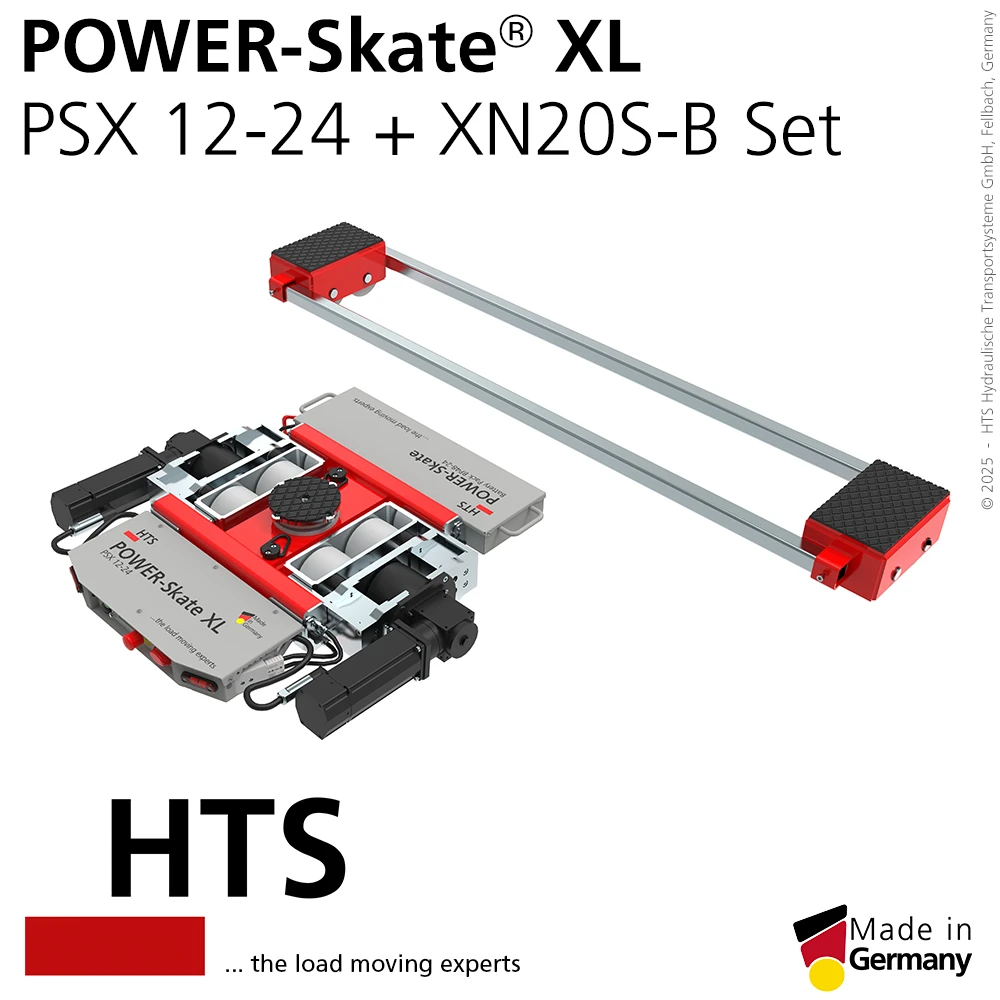

PSX 12‑24 + XN20S‑B Set

PSX 20‑40

Article Number
10.200.51.10
Max. Capacity
20000 kg
Wheels + Support Wheels
8 + 2 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Dimensions: Length x Width x Height
1399 x 1146 x 180 mm
Weight
300 kg

XN20S‑B

Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
81 kg

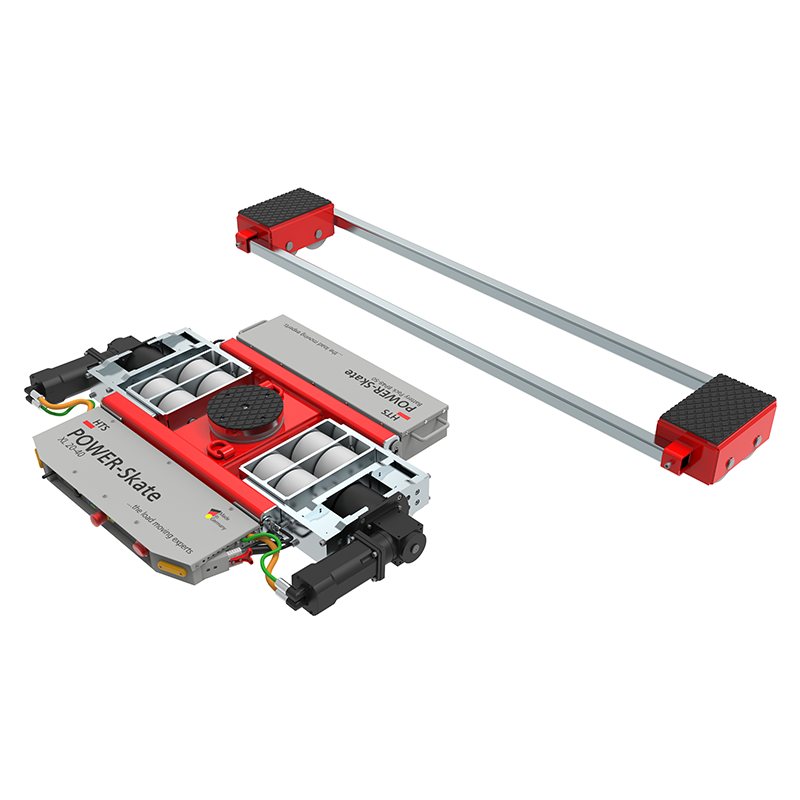

PSX 20‑40 + XN20S‑B Set

Max. Capacity
40000 kg
