Carrelli di trasporto motorizzati con ascensore per linee di produzione | HTS | the load moving experts

I carrelli di trasporto POWER-Skate H sono carat­te­rizzati da quanto segue:

  • Design compatto con dimen­sioni esterne ridotte
  • Sistema di solle­va­mento idraulico integrato
  • Guida flessibile in entrata e in uscita all’in­terno di una linea di produ­zione
  • Sterzo facile e stabilità direzionale costante grazie al controllo propor­zionale diretto con il sistema one-joystick.
  • Potenti motori sincroni a controllo digitale
  • Può essere combinato con tutti i carrelli della serie ECO-Skate XL
  • Ideale per l’uso in spazi ristretti in quanto non c’è bisogno di un veicolo di traino

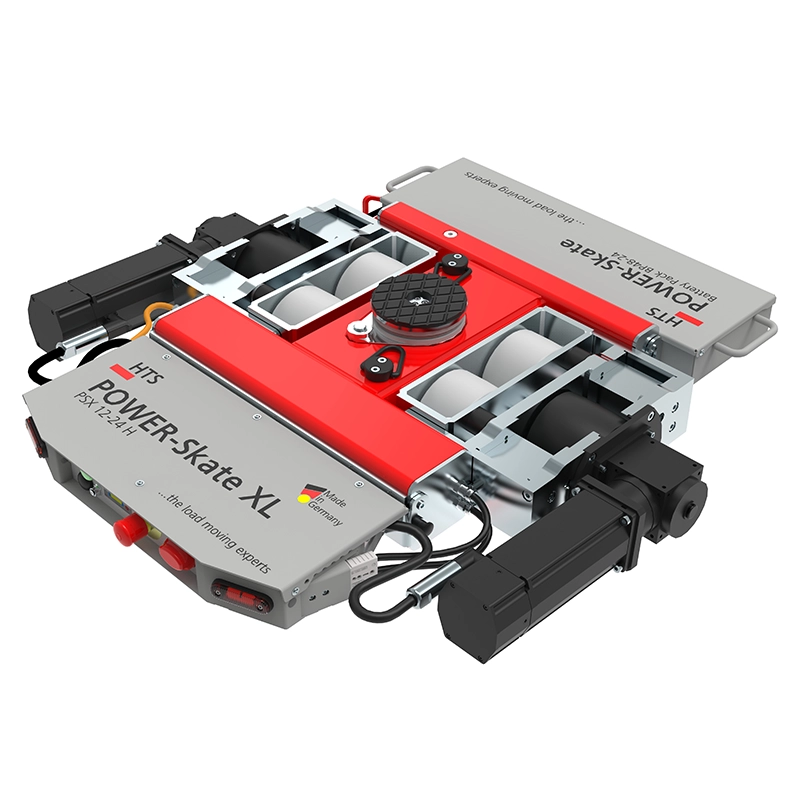

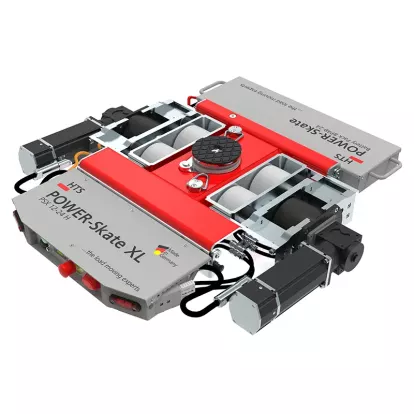

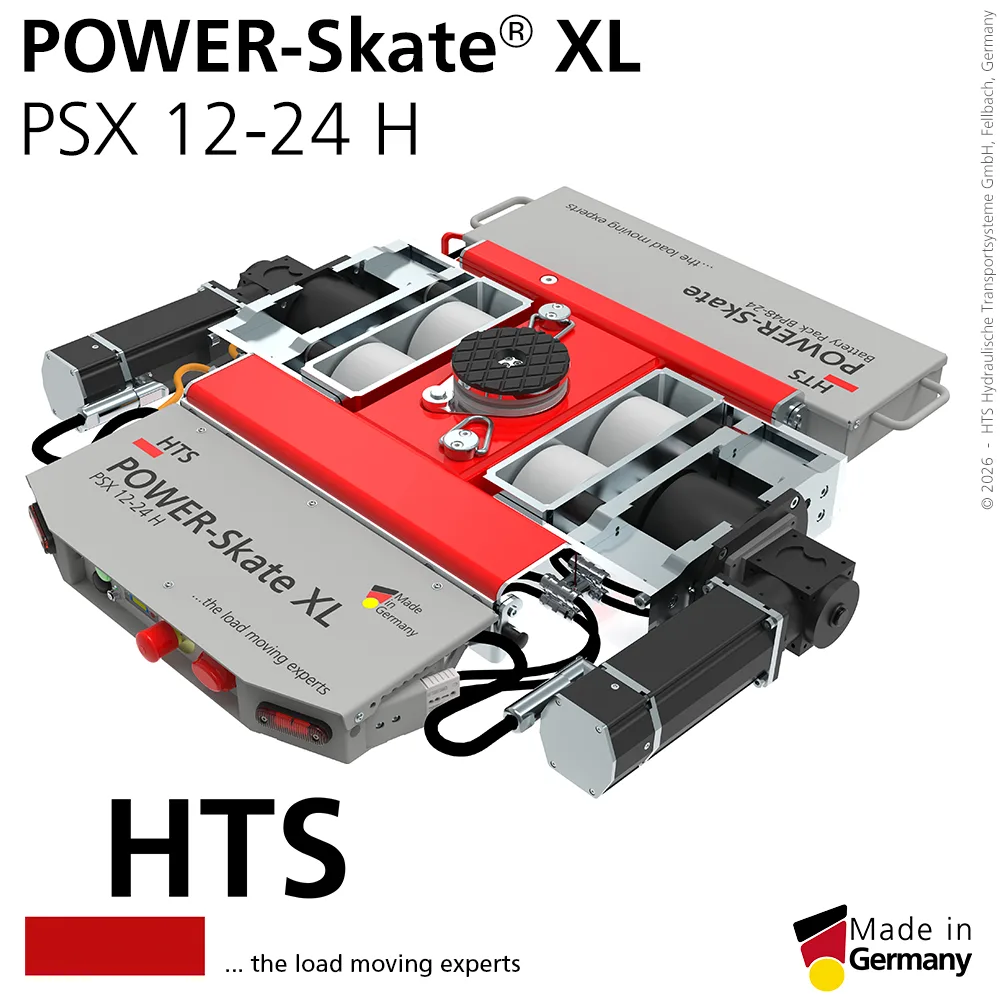

PSX 12‑24 H

Max. Capacity
12000 kg

XN20S‑B

Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
81 kg

PSX 12‑24 H + XN20S‑B Set

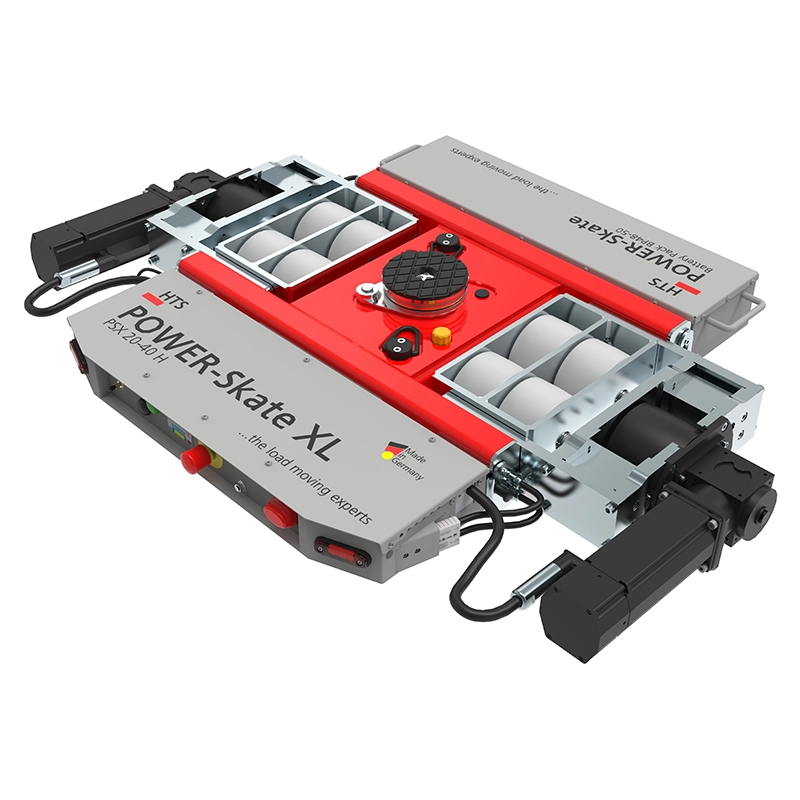

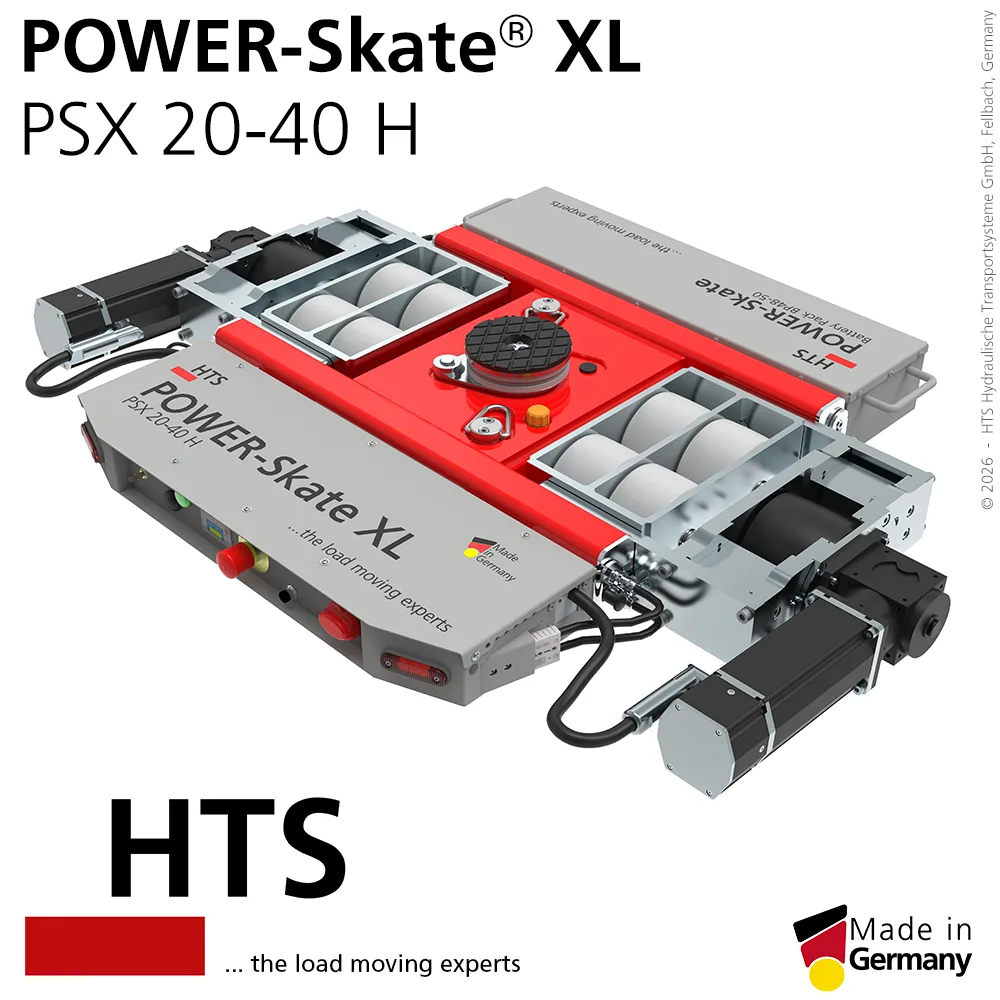

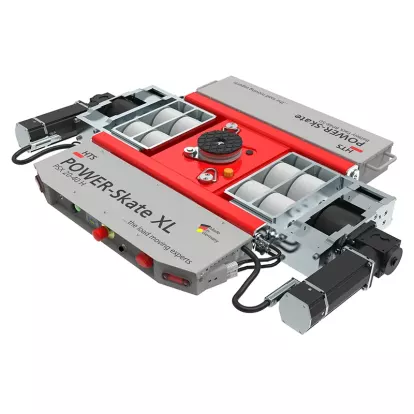

PSX 20‑40 H

Article Number
10.200.52.10
Max. Capacity
20000 kg
Wheels
8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 150 mm
Dimensions: Length x Width x Height
1414 x 1146 x 180 mm
Weight
325 kg

XN20S‑B

Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
81 kg

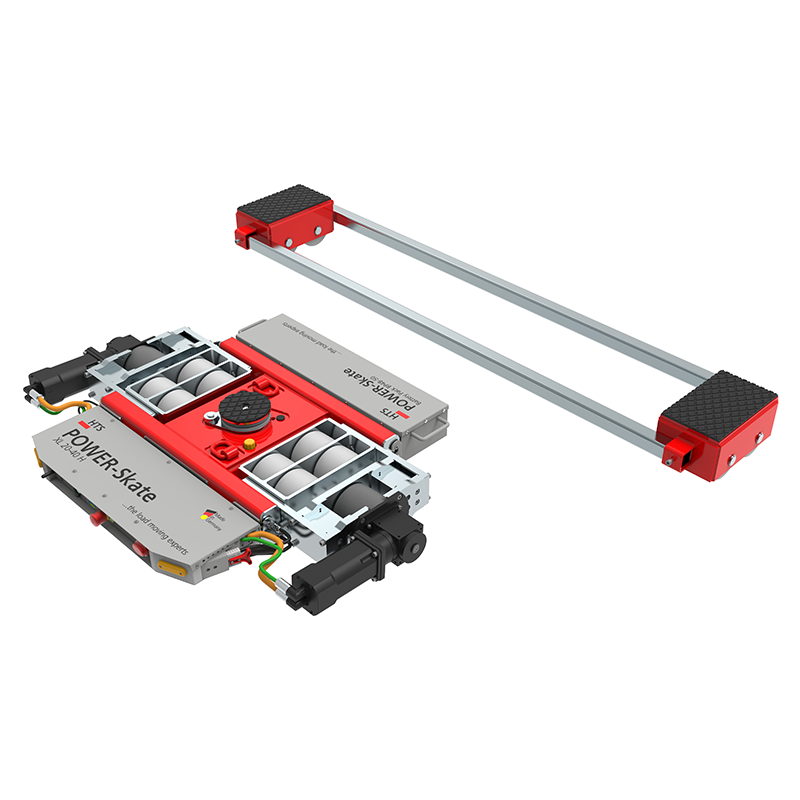

PSX 20‑40 H + XN20S‑B Set

Max. Capacity
40000 kg
