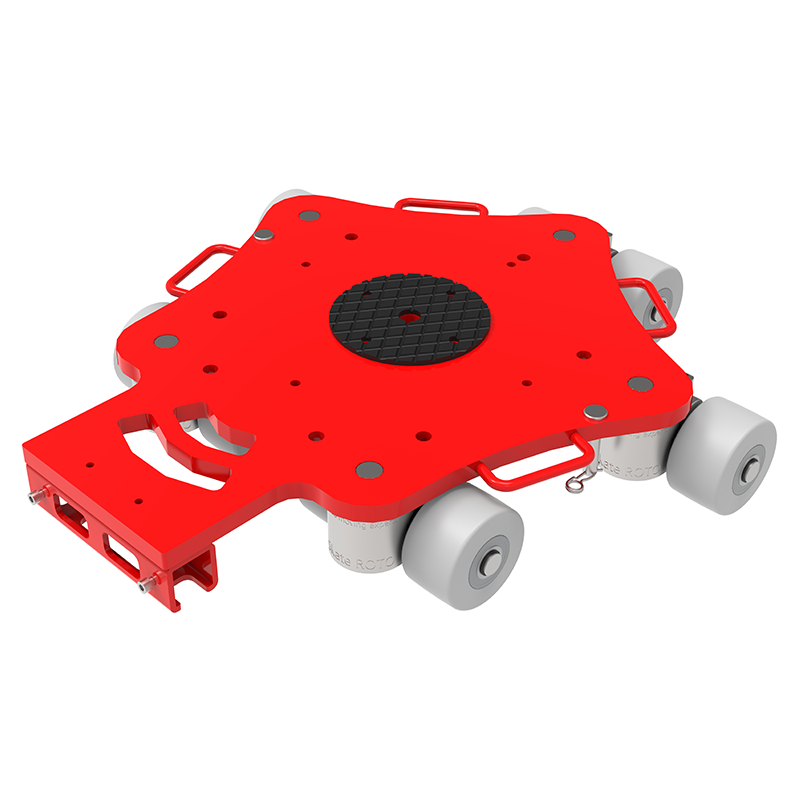

RFXN20 (NY)

Article Number
10.200.03.41
Max. Capacity
20000 kg
Wheels
10 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diametro
Ø 220 mm
Dimensions: Length x Width x Height
1000 x 915 x 180 mm
Peso
170 kg

PSX 12‑24

Article Number
10.121.51.10
Max. Capacity
12000 kg
Wheels + Support Wheels
4 + 2 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diametro
Ø 170 mm
Dimensions: Length x Width x Height
1047 x 1036 x 180 mm
Peso
175 kg

PSX 20‑40

Article Number
10.202.51.10
Max. Capacity
20000 kg
Wheels + Support Wheels
8 + 2 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 83 / Ø 30 mm
Load Area Diametro
Ø 220 mm
Dimensions: Length x Width x Height
1380 x 1000 x 180 mm
Peso
300 kg

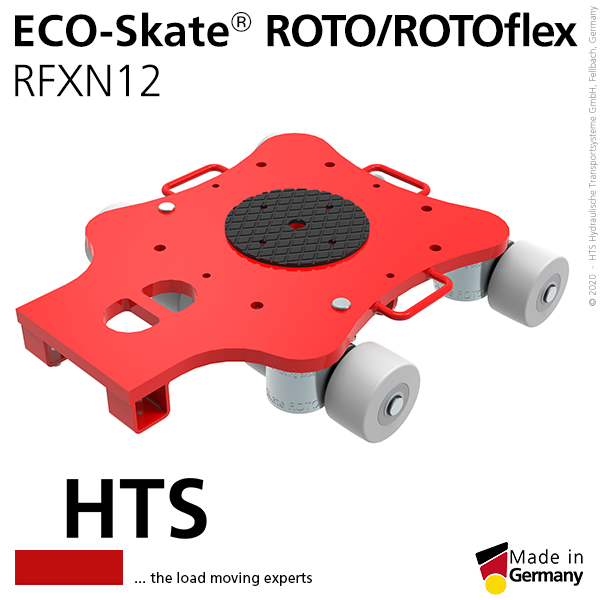

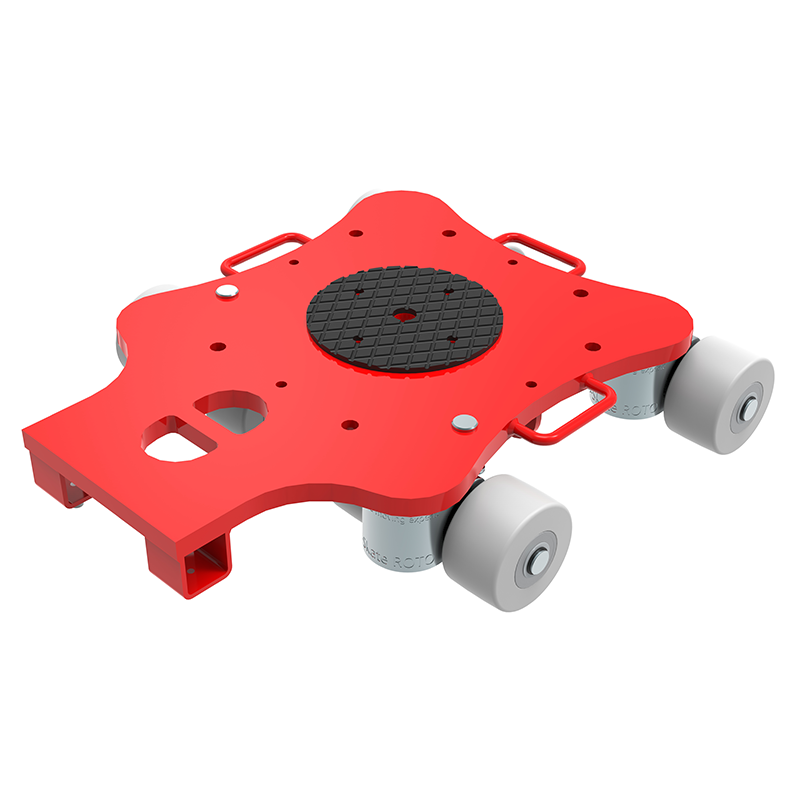

RFXN12 (NY)

Article Number
10.120.03.41
Max. Capacity
12000 kg
Wheels
8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diametro
Ø 250 mm
Handle Length
1620 mm
Adjustability
1000 – 1440 mm
Dimensions: Length x Width x Height
830 x 710 x 180 mm
Peso
120 kg

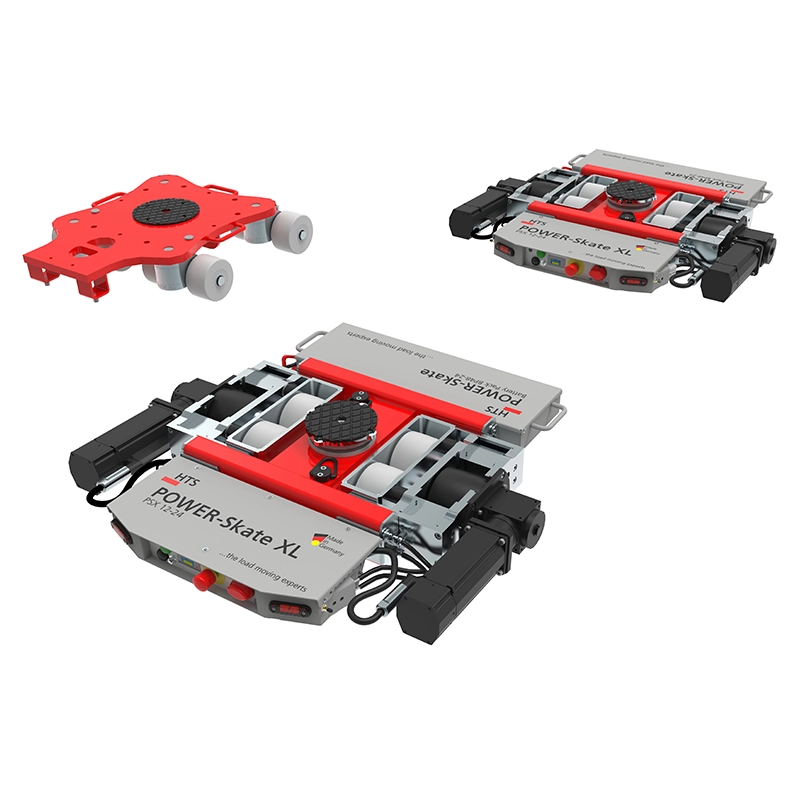

PSX 12‑24 DUO + RFXN12 Set

Max. Capacity
48000 kg

PSX 20‑40 DUO + RFXN12 Set

Max. Capacity
80000 kg
