I carrelli di trasporto ECO-Skate® DUO XL (PU) sono caratterizzati da:

  • Timone e bielle
    La serie DUO XL è fornita di serie con un timone stabile con occhio di traino e barre di collegamento regolabili. Lunghezze speciali sono disponibili su richiesta.
  • Ruote in poliuretano di alta qualità
    Standard su tutti i carrelli di trasporto ECO-Skate. Le ruote in poliuretano HTS possono anche essere ordinate separatamente.
  • Design compatto
  • Rivestimento in gomma antiscivolo
    Evita che il carico scivoli durante il trasporto. (Nel caso di carrelli di trasporto con supporto a quattro punti, i carrelli devono essere assicurati al carico in caso di pavimenti irregolari o viaggi su rampe in modo che non perdano la loro posizione se non sono carichi).
  • Superfici verniciate a polvere o galvanizzate
  • Combinabilità
    I carrelli DUO XL possono essere combinati tra loro e con le serie XL, ROTO XL o BALANCE, poiché hanno la stessa altezza di installazione. La capacità di carico totale è la somma dei carichi individuali.
  • Supporti speciali
    Può essere fabbricato o adattato individualmente secondo le esigenze.
  • Per il trasporto di container c’è la serie ECO-Skate® ISOCON.

HTS offre soluzioni speciali su misura per i clienti quando il programma di serie non è adatto per applicazioni speciali.

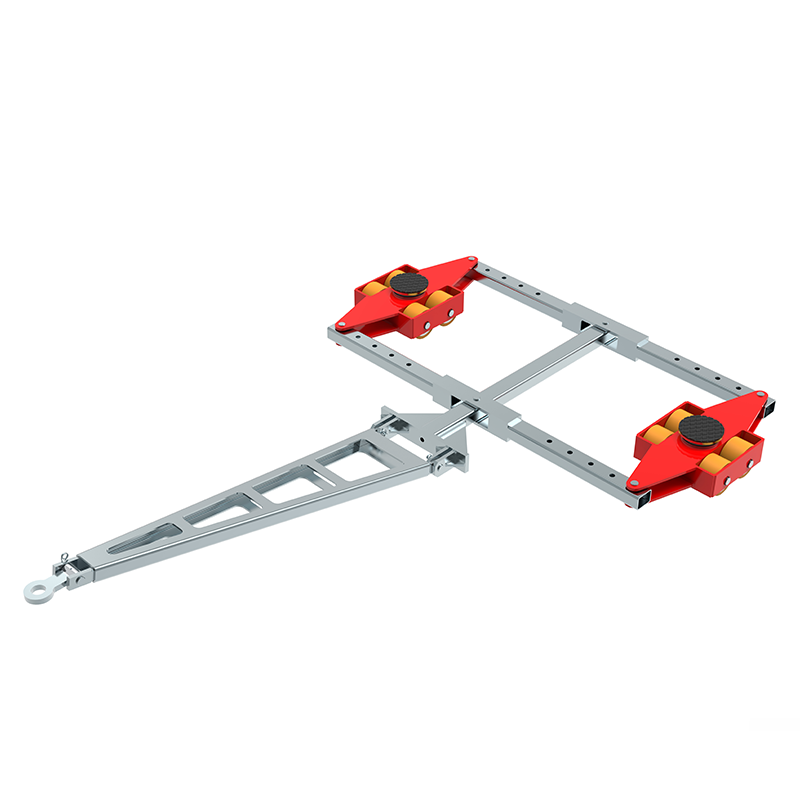

X16D (PU)

Article Number
10.160.02.30
Load Areas x Max. Capacity
2 x 8.000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 170 mm
Handle Length
1.620 mm
Adjustability
5 x (750 – 1.550) mm
Dimensions: Length x Width x Height
1.265 x 1.927 x 180 mm
Peso
190 kg

X16S (PU)

Article Number
10.160.02.20
Load Areas x Max. Capacity
2 x 8.000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1.940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Peso
87 kg

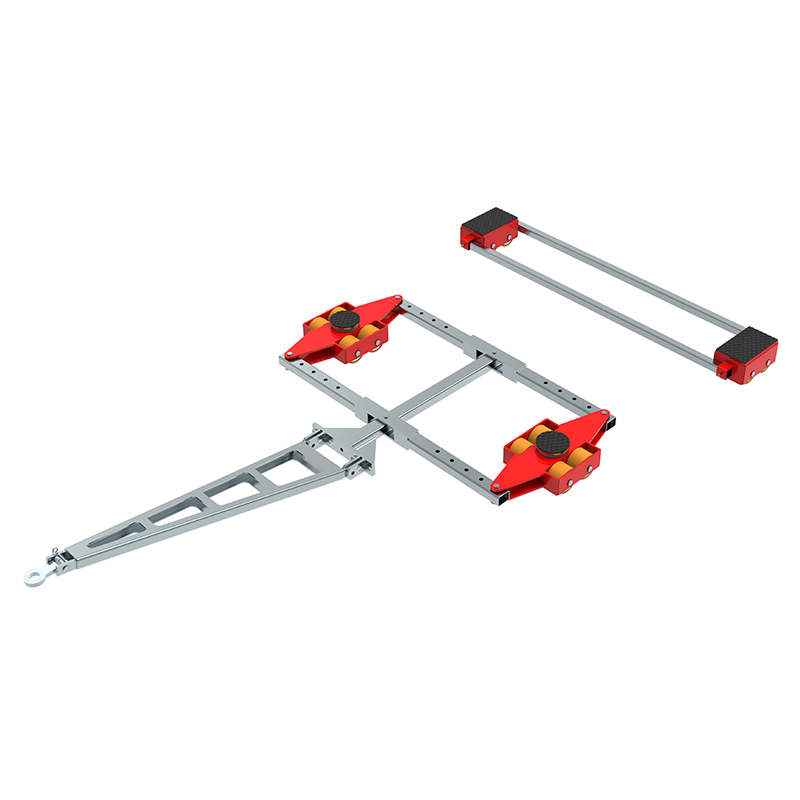

X16D (PU) + X16S (PU) Set

Article Number
10.160.02.30 + 10.160.02.20
Max. Capacity
2 x 8.000 + 2 x 8.000 kg

X16D (PU)

Article Number
10.160.02.30
Load Areas x Max. Capacity
2 x 8.000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 170 mm
Handle Length
1.620 mm
Adjustability
5 x (750 – 1.550) mm
Dimensions: Length x Width x Height
1.265 x 1.927 x 180 mm
Peso
190 kg

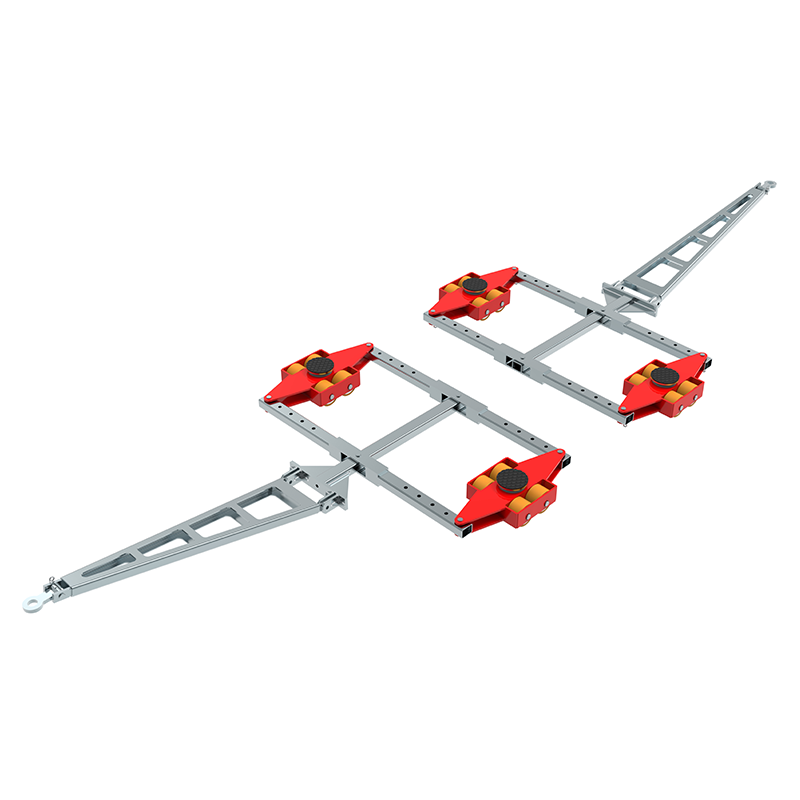

X16D (PU) + X16D (PU) Set

Article Number
10.160.02.30 (x2)
Max. Capacity
2 x 8.000 (x2) kg

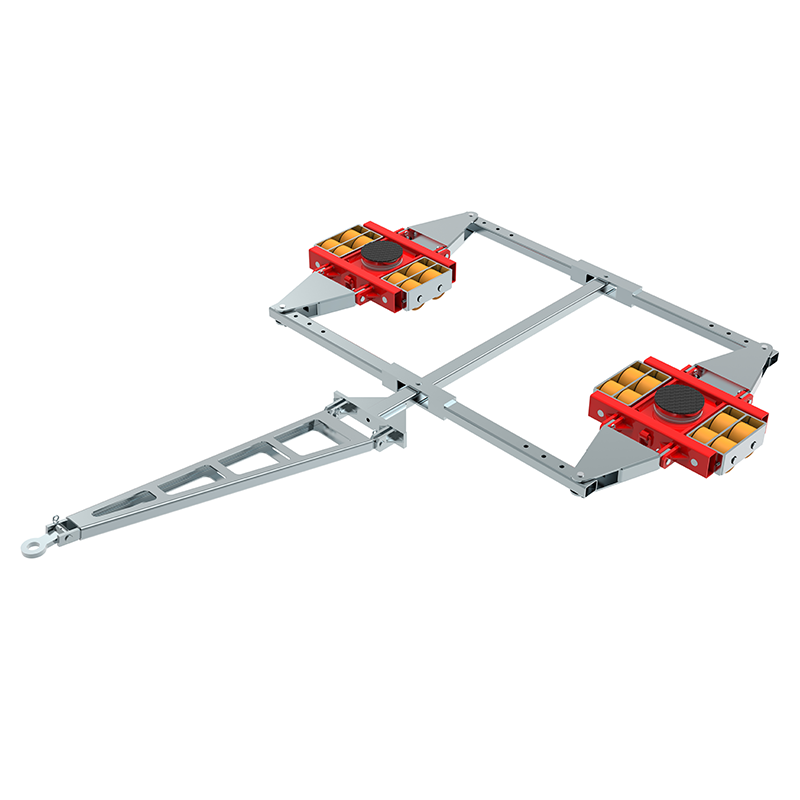

X32D (PU)

Article Number
10.320.02.30
Load Areas x Max. Capacity
2 x 16.000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 220 mm
Handle Length
1.620 mm
Adjustability
4 x (1.300 – 1.900) mm
Dimensions: Length x Width x Height
1.847 x 2.624 x 180 mm
Peso
399 kg

X32S (PU)

Article Number
10.320.02.20
Load Areas x Max. Capacity
2 x 16.000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 382) mm
Adjustability
420 – 1.660 mm
Dimensions: Length x Width x Height
456 x 410 x 180 mm
Peso
151 kg

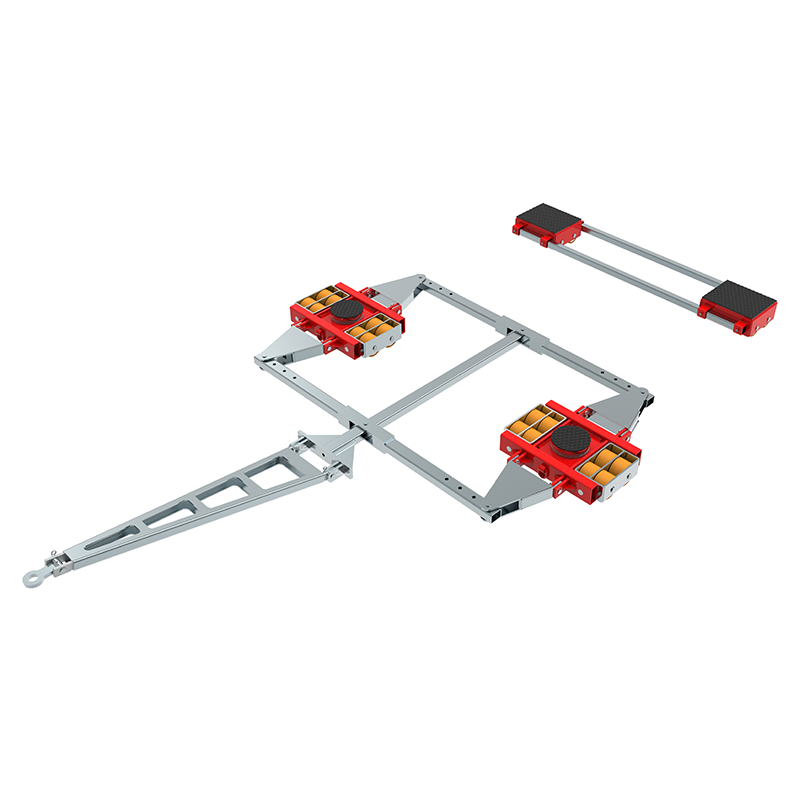

X32D (PU) + X32S (PU) Set

Article Number
10.320.02.30 + 10.320.02.20
Max. Capacity
2 x 16.000 + 2 x 16.000 kg

X32D (PU)

Article Number
10.320.02.30
Load Areas x Max. Capacity
2 x 16.000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 220 mm
Handle Length
1.620 mm
Adjustability
4 x (1.300 – 1.900) mm
Dimensions: Length x Width x Height
1.847 x 2.624 x 180 mm
Peso
399 kg

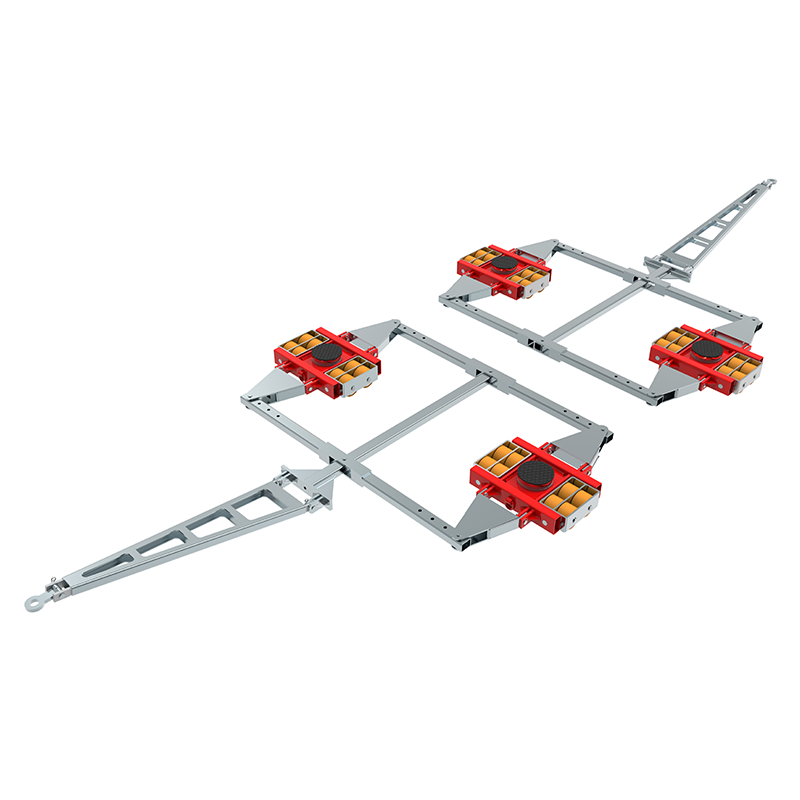

X32D (PU) + X32D (PU) Set

Article Number
10.320.02.30 (x2)
Max. Capacity
2 x 16.000 (x2) kg

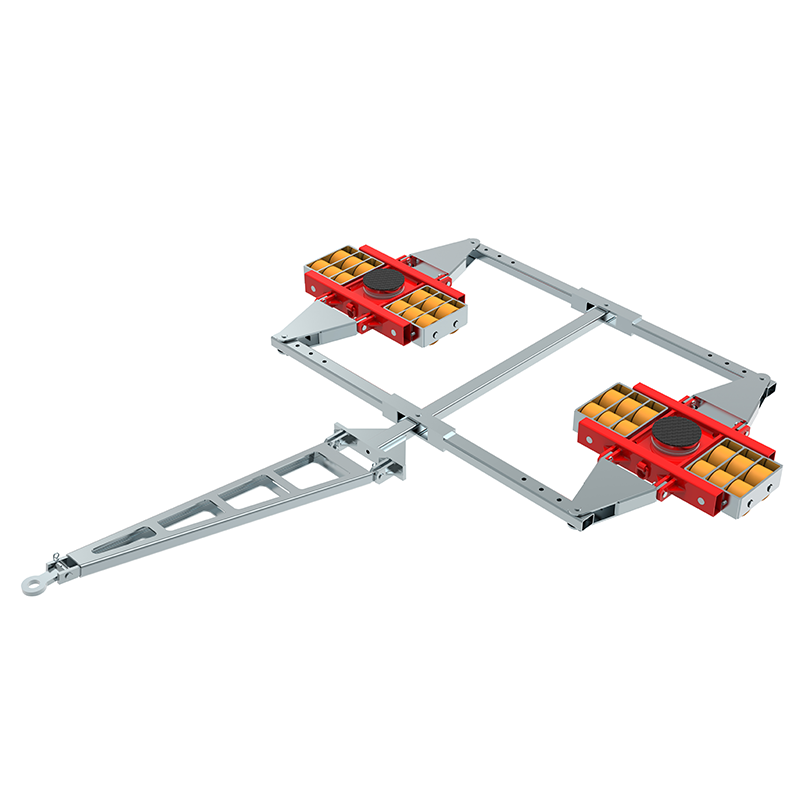

X48D (PU)

Article Number
10.480.02.30
Load Areas x Max. Capacity
2 x 24.000 kg
Wheels
2 x 12 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 220 mm
Handle Length
1.620 mm
Adjustability
4 x (1.300 – 1.900) mm
Dimensions: Length x Width x Height
1.847 x 2.831 x 180 mm
Peso
450 kg

X48S (PU)

Article Number
10.480.02.20
Load Areas x Max. Capacity
2 x 24.000 kg
Wheels
2 x 12 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 300) mm
Adjustability
692 – 1.690 mm
Dimensions: Length x Width x Height
579 x 692 x 180 mm
Peso
264 kg

X48D (PU) + X48S (PU) Set

Article Number
10.480.02.30 + 10.480.02.20
Max. Capacity
2 x 24.000 + 2 x 24.000 kg

X48D (PU)

Article Number
10.480.02.30
Load Areas x Max. Capacity
2 x 24.000 kg
Wheels
2 x 12 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x Diametro
2 x Ø 220 mm
Handle Length
1.620 mm
Adjustability
4 x (1.300 – 1.900) mm
Dimensions: Length x Width x Height
1.847 x 2.831 x 180 mm
Peso
450 kg

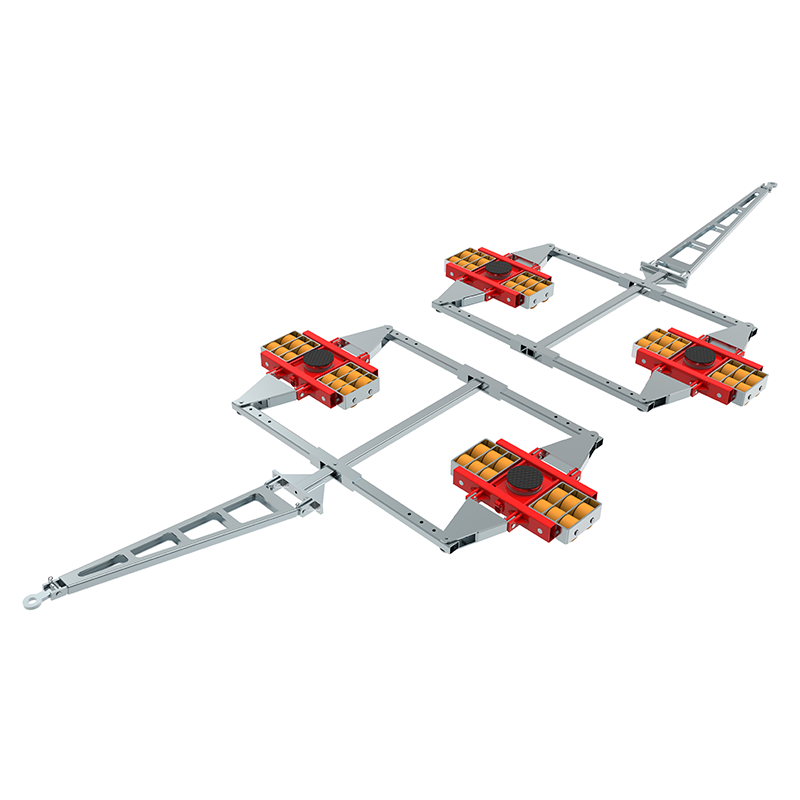

X48D (PU) + X48D (PU) Set

Article Number
10.480.02.30 (x2)
Max. Capacity
2 x 24.000 (x2) kg
