ECO-Skate® ISOCON XL (NY)

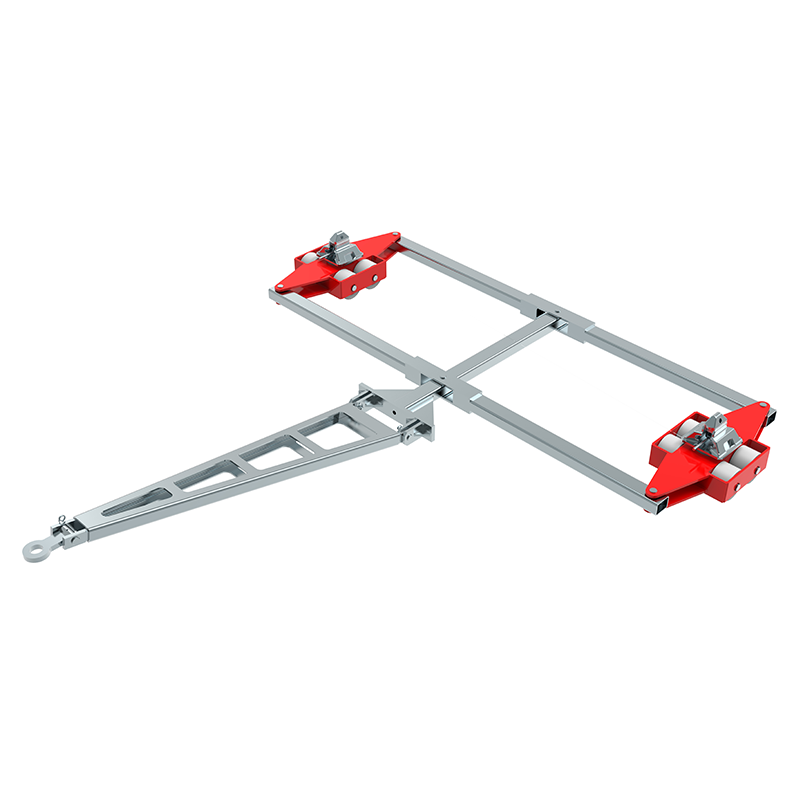

ICXN20D TLS (NY)

Article Number
10.200.03.35
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1275 x 2636 x 221 / 298 mm
Peso
215 kg
Scheda informativa

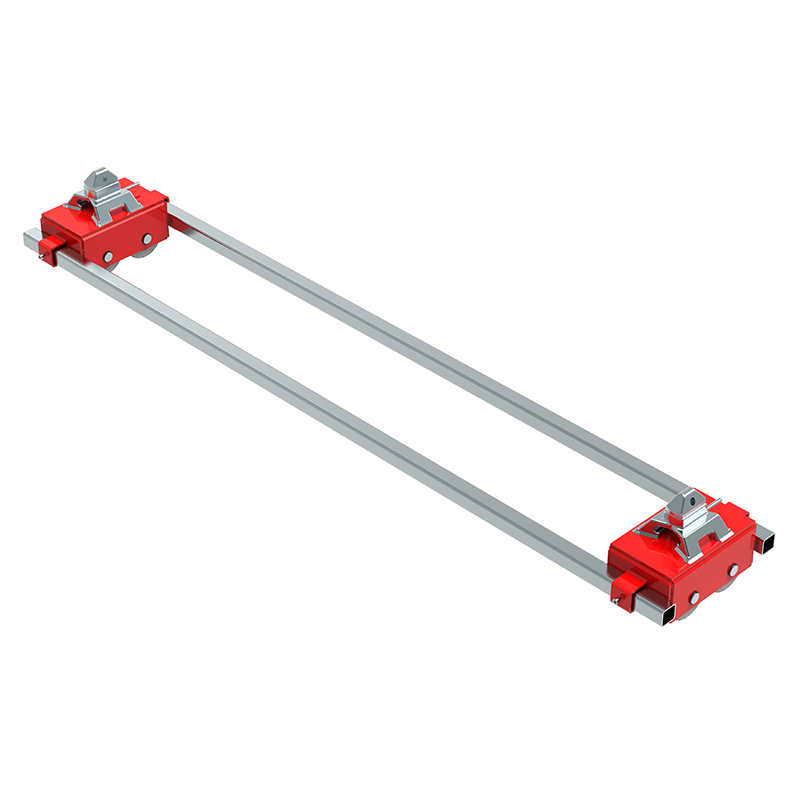

ICXN20S TLS (NY)

Article Number
10.200.03.25
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
216 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2474 x 221 / 298 mm
Peso
104 kg
Scheda informativa

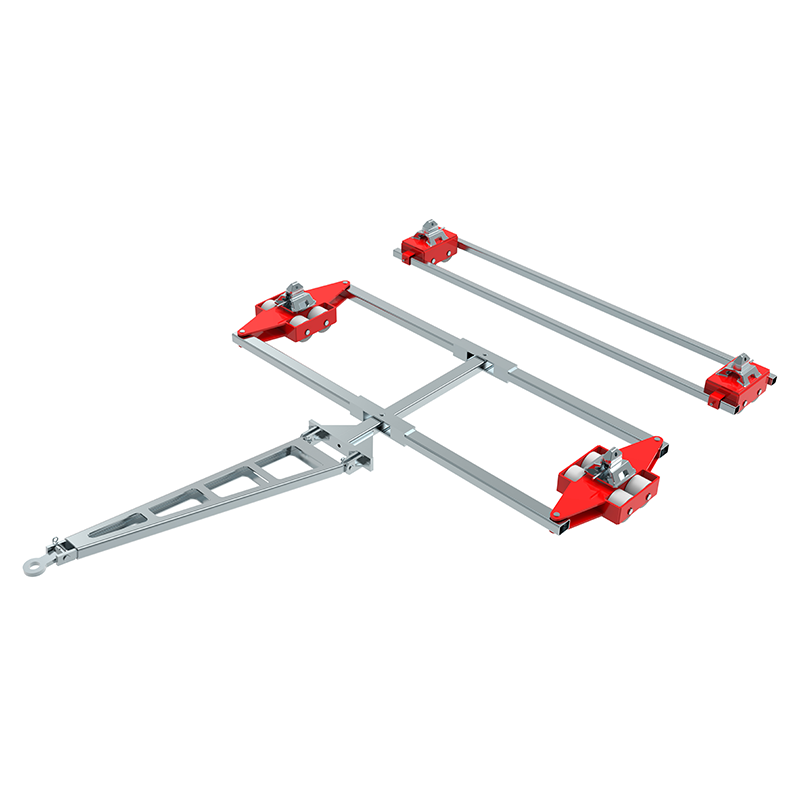

ICXN20D TLS (NY) + ICXN20S TLS (NY) Set

Max. Capacity
40000 kg
ICXN20D-TLS ICXN20S-TLS

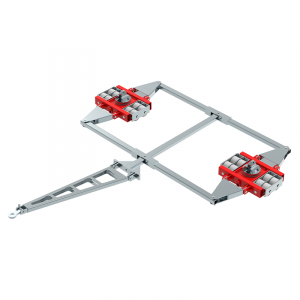

ICXN40D TLS (NY)

Article Number
10.400.03.35
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
1620 mm
Distance cone center
2259 mm
Dimensions: Length x Width x Height / Container Lock
1847 x 2983 x 221 / 298 mm
Peso
382 kg
Scheda informativa

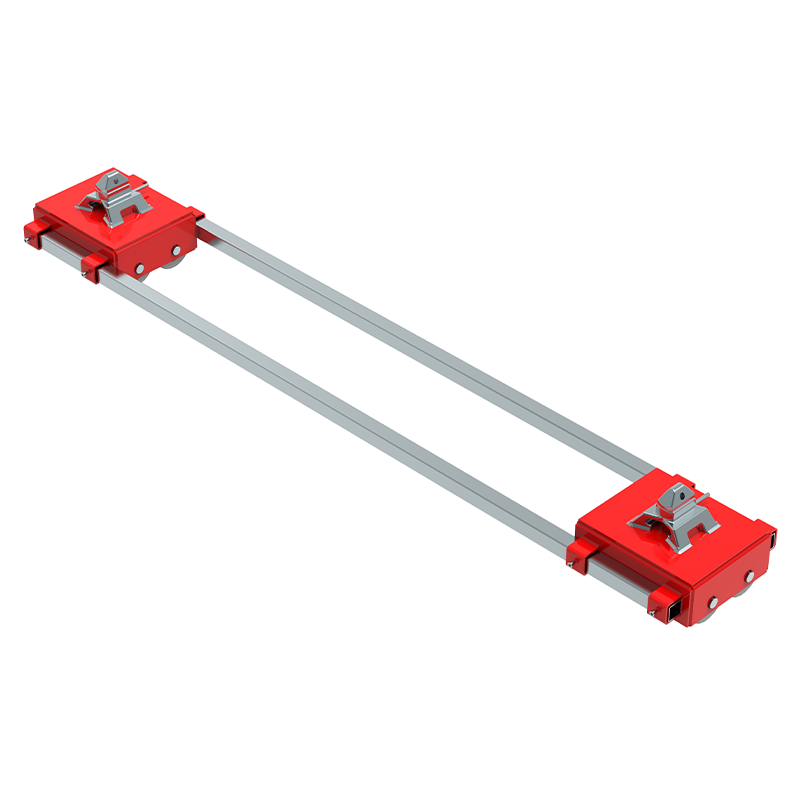

ICXN40S TLS (NY)

Article Number
10.400.03.25
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Handle Length
n.A.
Adjustability
410 – 2259 mm
Dimensions: Length x Width x Height / Container Lock
456 x 2669 x 221 / 298 mm
Peso
182 kg
Scheda informativa

ICXN40D TLS (NY) + ICXN40S TLS (NY) Set

Max. Capacity
80000 kg
ICXN40D-TLS ICXN40S-TLS
