La serie ECO-Skate® CR presenta le seguenti caratteristiche:

  • Timone e bielle
    I carrelli di trasporto della serie CR sono consegnati con timone e biella come standard. Lunghezze speciali disponibili su richiesta.
  • Superficie nichelata e rulli a bassa usura
    Per l’uso in determinate condizioni nelle camere bianche, nella produzione alimentare o nell’industria farmaceutica.
  • Ruote HTS
    Tutti i carrelli sono dotati di serie di ruote in nylon HTS. Sono fatti di materiale solido e non sono stampati a iniezione. Questo li rende particolarmente pregiati e resistenti all’abrasione. I carichi molto elevati che ne derivano non possono mai essere raggiunti con ruote fatte di tubi di nylon convenzionali. Le ruote in nylon HTS sono disponibili anche singolarmente.
  • Combinabile
    Tutti i carrelli di trasporto della serie CR possono essere combinati tra loro a piacere, poiché l’altezza di montaggio è la stessa. La capacità di carico totale è la somma dei carichi individuali.

HTS offre soluzioni speciali su misura per i singoli clienti quando la gamma standard non è adatta per applicazioni speciali.

iN40L‑CR

Article Number
12.040.01.10
Max. Capacity
4000 kg
Wheels
4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diametro
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
238 x 268 x 110 mm
Peso
12 kg

iN40S‑CR

Article Number
12.040.01.20
Load Areas x Max. Capacity
2 x 2000 kg
Wheels
2 x 2 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 mm
Load Areas x (Length x Width)
2 x (150 x 75) mm
Adjustability
120 – 880 mm
Dimensions: Length x Width x Height
246 x 120 x 110 mm
Peso
12 kg

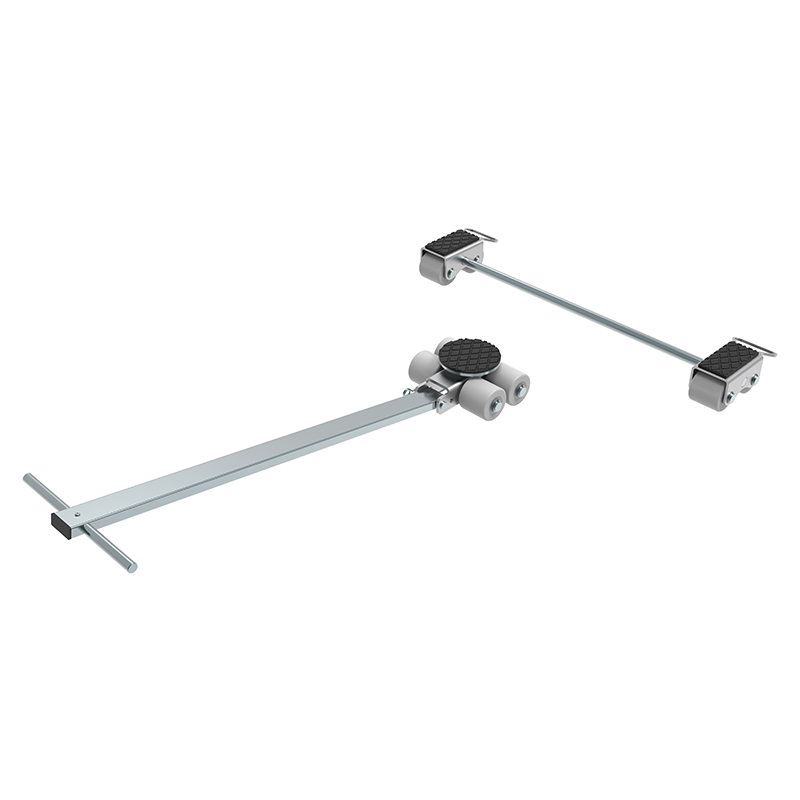

iN40L‑CR + iN40S‑CR Set

Max. Capacity
8000 kg

iN80L‑CR

Article Number
12.080.01.10
Max. Capacity
8000 kg
Wheels
8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diametro
Ø 150 mm
Handle Length
1000 mm
Dimensions: Length x Width x Height
339 x 483 x 110 mm
Peso
21 kg

iN80S‑CR

Article Number
12.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Peso
25 kg

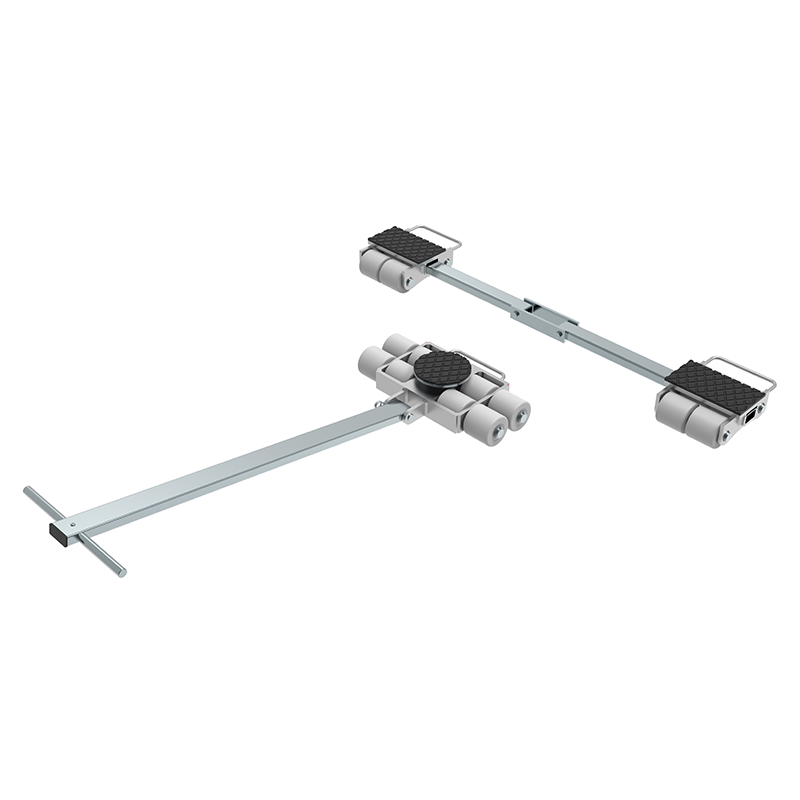

iN80L‑CR + iN80S‑CR Set

Max. Capacity
16000 kg

iN120L‑CR

Article Number
12.120.01.10
Max. Capacity
12000 kg
Wheels
12 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diametro
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 780 x 110 mm
Peso
50 kg

iN120S‑CR

Article Number
12.120.01.20
Load Areas x Max. Capacity
2 x 6000 kg
Wheels
2 x 6 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (180 x 170) mm
Adjustability
460 – 1145 mm
Dimensions: Length x Width x Height
295 x 295 x 110 mm
Peso
29 kg

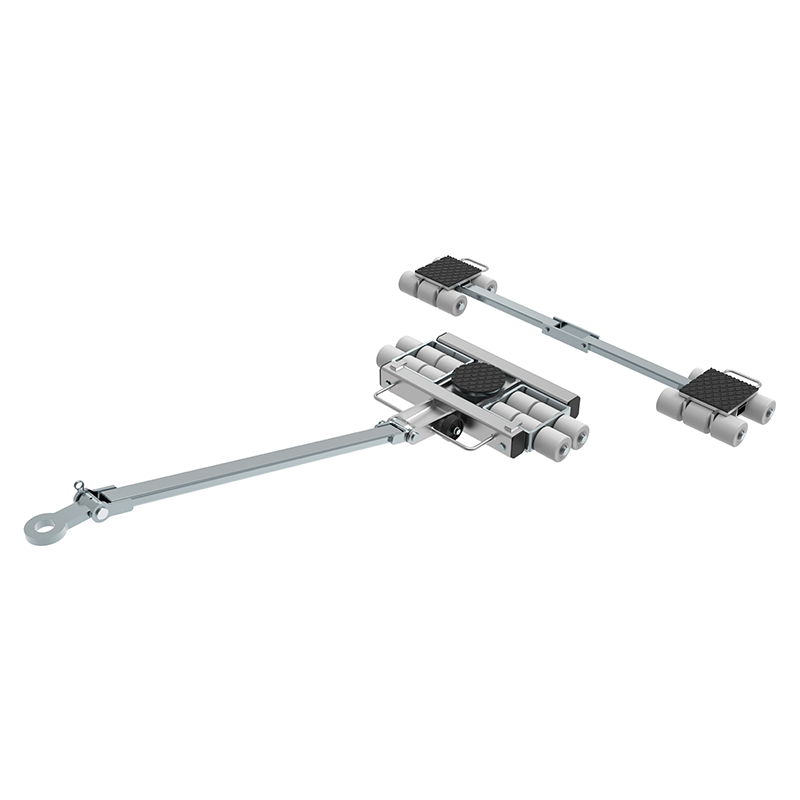

iN120L‑CR + iN120S‑CR Set

Max. Capacity
24000 kg

iN160L‑CR

Article Number
12.160.01.10
Max. Capacity
16000 kg
Wheels
16 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Area Diametro
Ø 170 mm
Handle Length
1170 mm
Dimensions: Length x Width x Height
528 x 982 x 110 mm
Peso
60 kg

iN160S‑CR

Article Number
12.160.01.20
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 8 pezzo/pezzi
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (200 x 220) mm
Adjustability
560 – 1095 mm
Dimensions: Length x Width x Height
291 x 382 x 110 mm
Peso
36 kg

iN160L‑CR + iN160S‑CR Set

Max. Capacity
32000 kg
