I carrelli di trasporto della serie ECO-Skate® XL (PU) sono carat­te­rizzati da quanto segue:

  • Timone e biella
    I carrelli di trasporto della serie XL sono forniti di serie con un timone e delle bielle. Il timone ha un occhio di traino e le robuste barre di colle­ga­mento sono fatte di robusto tubo quadrato galva­nizzato. Lunghezze speciali sono dispo­nibili su richiesta.
  • Cusci­netto indivi­duale
    I cusci­netti indivi­duali di ogni rullo sui carrelli di trasporto XL impedi­scono all’asse di piegarsi in caso di sovrac­carico di breve durata.
  • Combi­nabile
    Le serie XL possono essere combinate tra loro e con i carrelli delle serie BALANCE, DUO XL o ROTO XL. Hanno la stessa altezza di instal­la­zione e la capacità di carico totale è la somma dei carichi indivi­duali.
  • Ruote in poliu­retano HTS
    I carrelli XL (PU) sono dotati di serie di ruote in poliu­retano HTS. Questi possono anche essere ordinati singo­lar­mente.
  • HTS offre soluzioni speciali su misura per il cliente quando la gamma standard non è adatta per appli­ca­zioni speciali.
Bild folgt

X48L (PU) + X64S (PU) Set

Max. Capacity
112000 kg
Transportfahrwerk mit Dreipunktauflage - ECO Skate XL

X48L (PU) + X48S (PU) Set

Weight
96000 kg

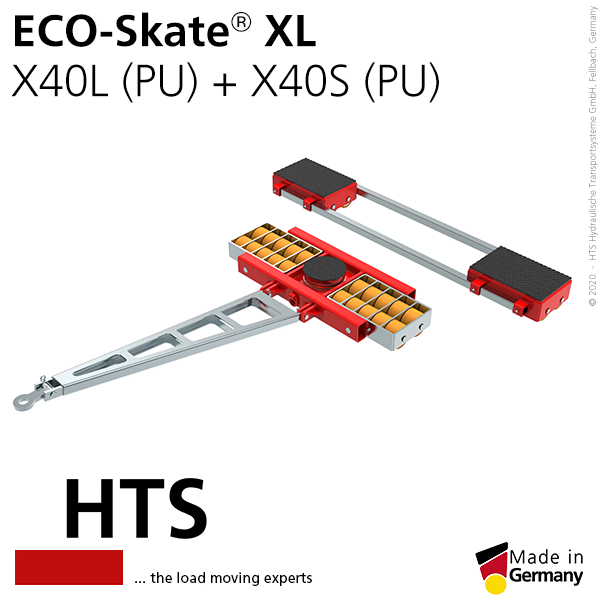

X40L (PU) + X40S (PU) Set

Weight
80000 kg

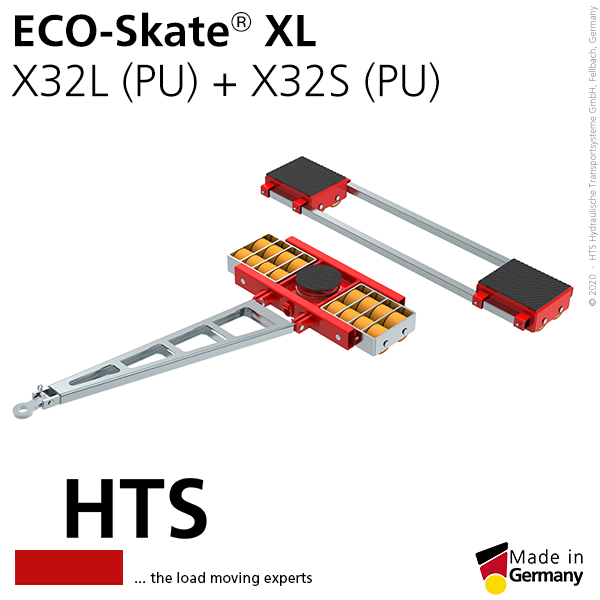

ECO-Skate-XL-X32L-PU-X32S-PU-Set

X32L (PU) + X32S (PU) Set

Weight
64000 kg

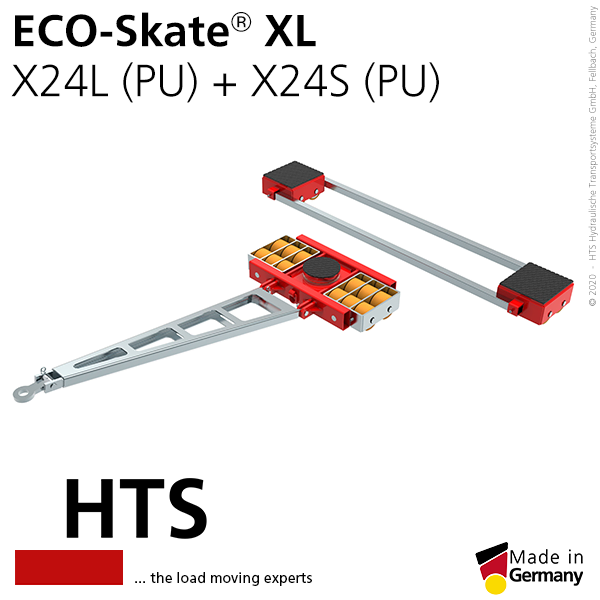

ECO-Skate-XL-X24L-PU-X24S-PU-Set

X24L (PU) + X24S (PU) Set

Weight
48000 kg

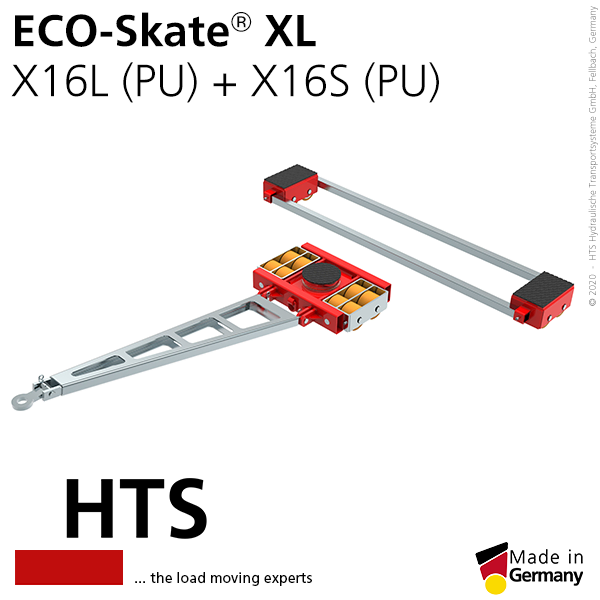

X16L (PU) + X16S Set (PU)

Weight
32000 kg

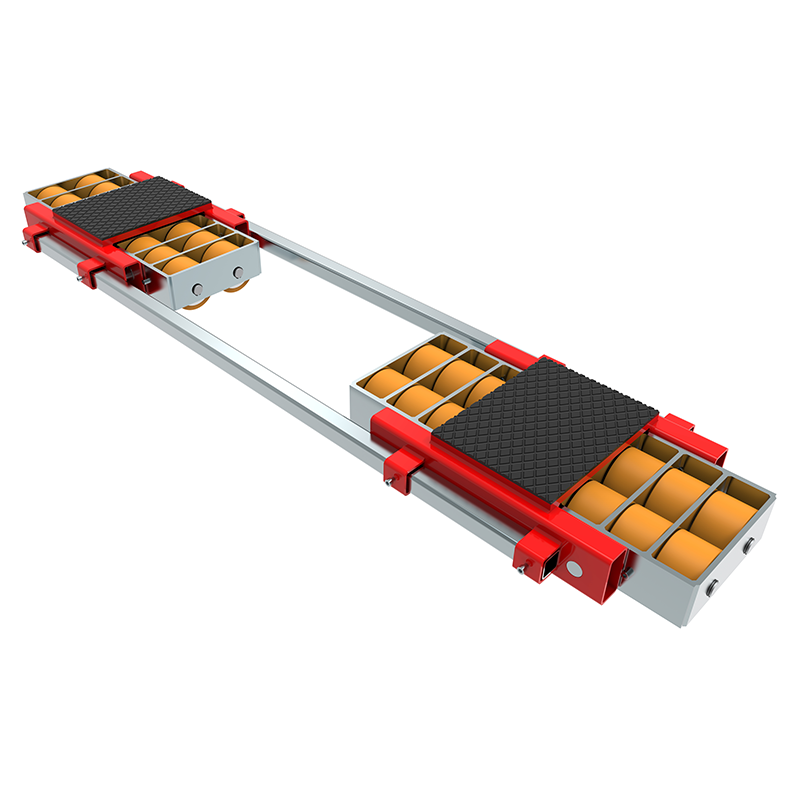

X64S (PU)

Article Number
10.640.02.20
Load Areas x Max. Capacity
2 x 32000 kg
Wheels
2 x 16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 300) mm
Adjustability
880 – 1600 mm
Dimensions: Length x Width x Height
579 x 880 x 180 mm
Weight
316 kg

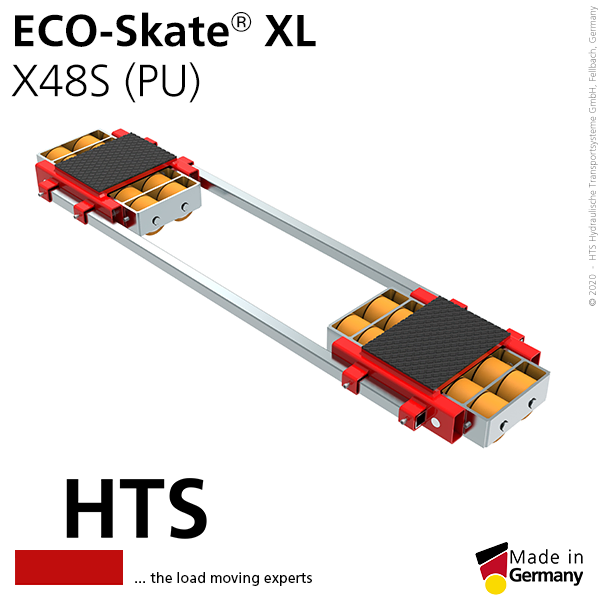

ECO-Skate-XL-X48S-PU

X48S (PU)

Article Number
10.480.02.20
Load Areas x Max. Capacity
2 x 24000 kg
Wheels
2 x 12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (400 x 300) mm
Adjustability
692 – 1690 mm
Dimensions: Length x Width x Height
579 x 692 x 180 mm
Weight
264 kg

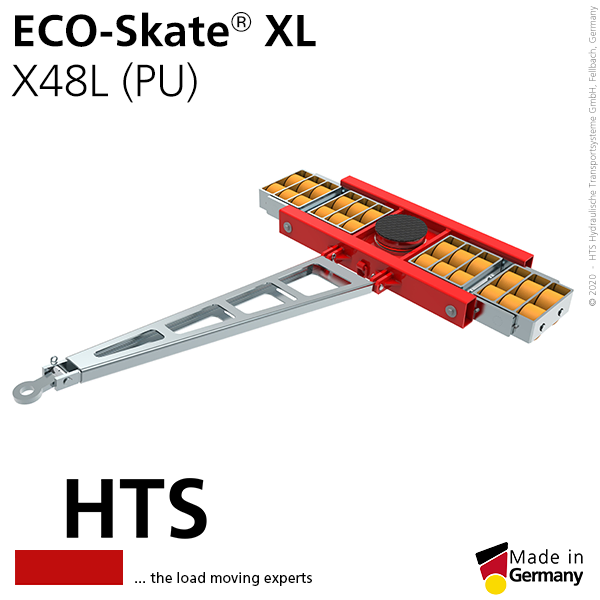

ECO-Skate-XL-X48L-PU

X48L (PU)

Article Number
10.480.02.10
Max. Capacity
48000 kg
Wheels
24 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
660 x 1671 x 180 mm
Weight
319 kg

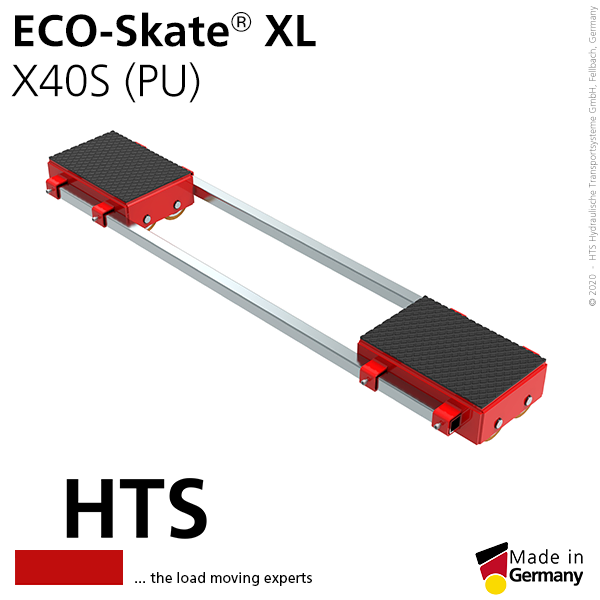

X40S (PU)

Article Number
10.400.02.20
Load Areas x Max. Capacity
2 x 20000 kg
Wheels
2 x 10 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 480) mm
Adjustability
550 – 1650 mm
Dimensions: Length x Width x Height
456 x 507 x 180 mm
Weight
192 kg

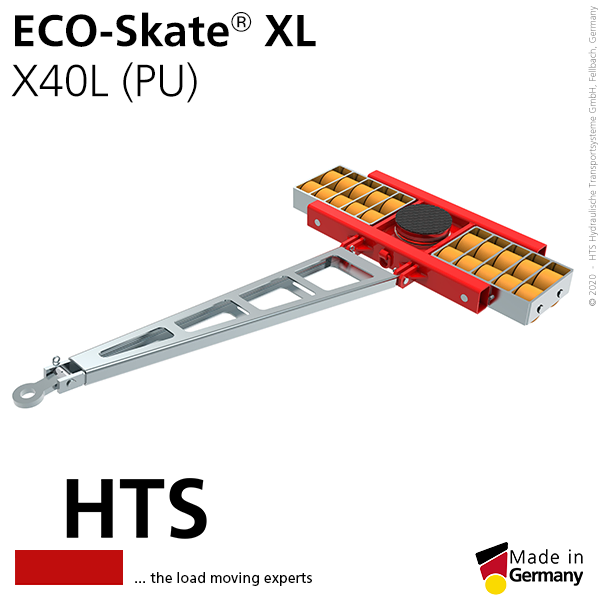

X40L (PU)

Article Number
10.400.02.10
Max. Capacity
40000 kg
Wheels
20 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
607 x 1335 x 180 mm
Weight
230 kg

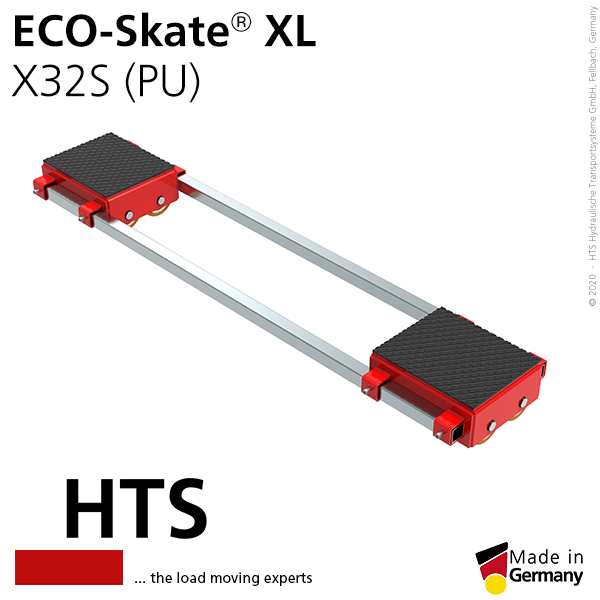

X32S (PU)

Article Number
10.320.02.20
Load Areas x Max. Capacity
2 x 16000 kg
Wheels
2 x 8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 382) mm
Adjustability
420 – 1660 mm
Dimensions: Length x Width x Height
456 x 410 x 180 mm
Weight
151 kg

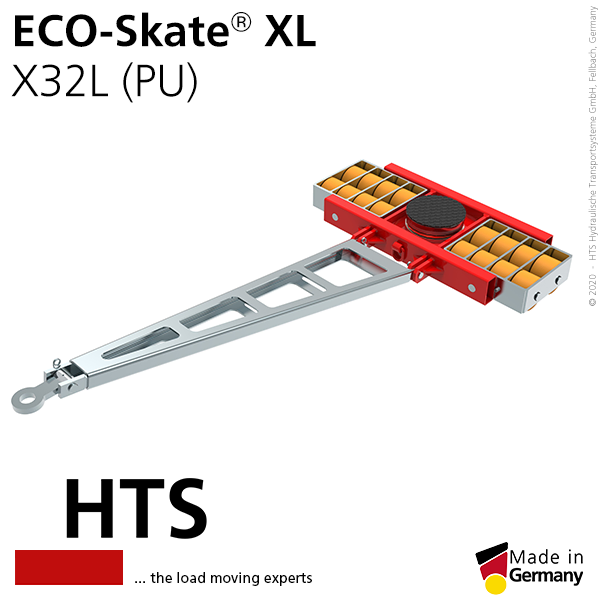

ECO-Skate-XL-X32L-PU

X32L (PU)

Article Number
10.320.02.10
Max. Capacity
32000 kg
Wheels
16 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 250 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 1138 x 180 mm
Weight
196 kg

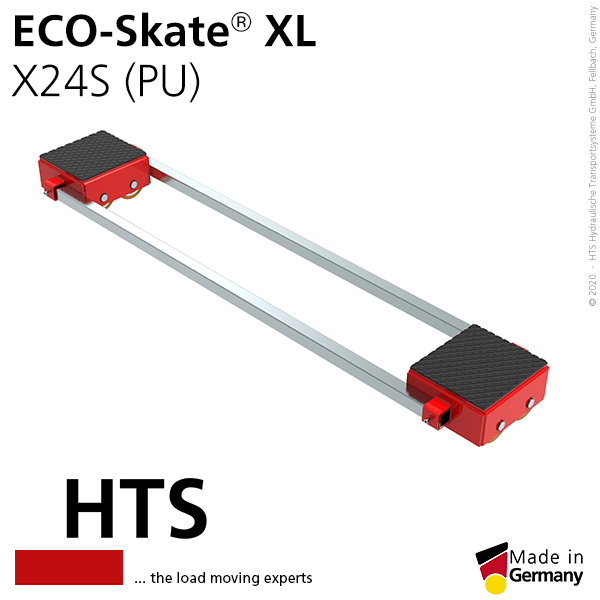

ECO-Skate-XL-X24S-PU

X24S (PU)

Article Number
10.240.02.20
Load Areas x Max. Capacity
2 x 12000 kg
Wheels
2 x 6 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 285) mm
Adjustability
320 – 1940 mm
Dimensions: Length x Width x Height
456 x 313 x 180 mm
Weight
119 kg

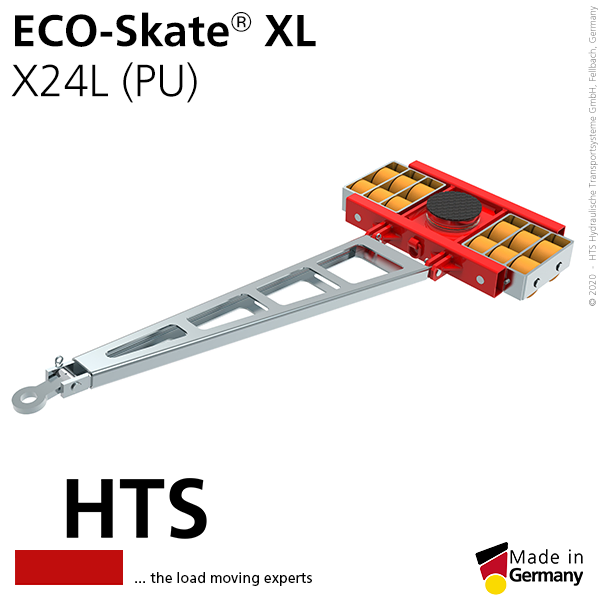

X24L (PU)

Article Number
10.240.02.10
Max. Capacity
24000 kg
Wheels
12 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
567 x 931 x 180 mm
Weight
158 kg

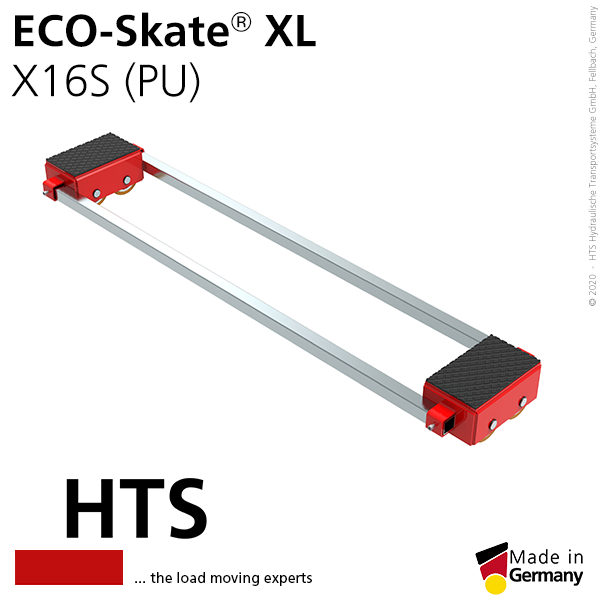

X16S (PU)

Article Number
10.160.02.20
Load Areas x Max. Capacity
2 x 8000 kg
Wheels
2 x 4 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Areas x (Length x Width)
2 x (318 x 188) mm
Adjustability
220 – 1940 mm
Dimensions: Length x Width x Height
456 x 216 x 180 mm
Weight
87 kg

X16L (PU)

Article Number
10.160.02.10
Max. Capacity
16000 kg
Wheels
8 Stk.
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diameter
Ø 220 mm
Handle Length
1620 mm
Dimensions: Length x Width x Height
568 x 724 x 180 mm
Weight
133 kg
